Temperature Screening

What can you do to keep your workplace safe ?

Keep it cool, keep it safe

As Canada shifts towards a new normal, employers are looking for solutions to keep their teams healthy and workplaces safe. One of the primary symptoms consistent with COVID-19 is an elevated body temperature of above 38˚C (100.4˚F).

Thermal testing is non-invasive and produces objective and instant results. Implementing a temperature screening procedure could very well be one of be simplest and most effective measures to adopt to mitigate the risk of an outbreak within a workplace.

Temperature Screening Thermal Solutions

Thermographic Cameras are designed to detect elevated skin-surface temperatures, and can thus be used for rapid and preliminary temperature screening in office buildings, factories, stations, airports and other public places, with accuracy up to ±0.3°C.

One second to detect skin-surface temperature of a person
Multi-person detection simultaneously
Non-contact measurement to avoid physical contact
Immediately alarming to notify operators
AI detection to reduce false alarms from other heat sources

Accuracy: ±0.5° C (±0.9° F)

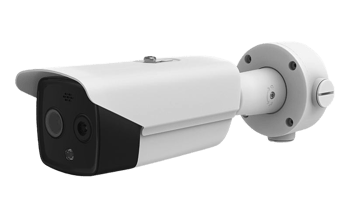

Thermographic Bullet Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by with deep learning technology.

384 × 288 High Resolution Thermal Channel, High Sensitivity Sensor

Temperature Range: 30° to 45° C (86° to 113° F)
Lens (Focal Length) 6 mm
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
IR Distance Up to 50 m
24 VAC ±25%, 12 VDC ±25%

Group 2

Accuracy: ±0.5° C (±0.9° F)

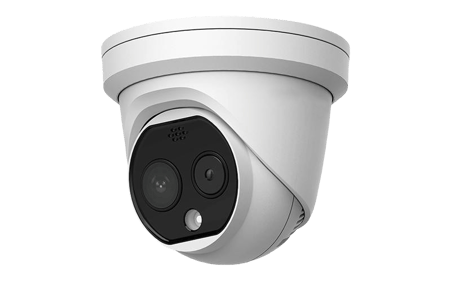

Thermographic Turret Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed with deep learning technology.

160 x 120 Thermal Resolution (Upscaled to 320 x 240)
Lens (Focal Length) 4 mm
Temperature Accuracy: ±0.5° C (±0.9° F) at 0.8 m to 1.5 m (2.62 ft to 4.92 ft)
3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line)
IR Distance Up to 15 m (49 ft)
12 VDC ±20%

1217b-800x500-removebg-1

Improves Accuracy to ±0.3°C (±0.5°F)

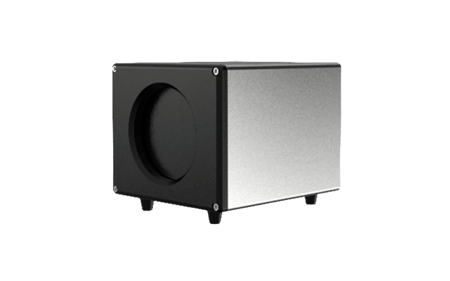

As a standard radiation source, black body has been widely used for calibrating infrared light system, measuring material emissivity, measuring parameters of infrared sensor, and transmitting temperature between infrared emitter and thermal device.

Calibrates Thermal Devices with High Accuracy
Supports Different Temperature Settings
High Accuracy and Stability
Easy Temperature Calibration and Correction
100 VAC to 240 VAC

black body

Accuracy: ±0.5°C

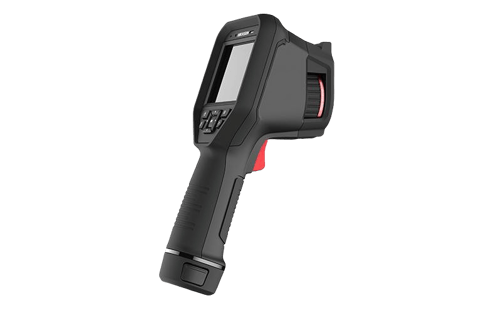

Thermographic handheld camera is specially designed for temperature measurement applications where mobility and instant intervention are required.

160 × 120 Resolution (Thermal), and 8 MP Resolution (Optical)
Thermographic Accuracy up to ±0.5° C (±0.9° F) at 1.0 m to 2.0 m (3.3 ft to 6.6 ft)
640 × 480 Resolution 3.5” LCD Touch Display
Display Fusion of Thermal View and Optical View
Supports Color Highlight Alarm and Audio Alarm

hand-held-1
